How to redact in Snipping Tool without leaving data exposed

Snipping Tool does not have a redaction tool

This is the part that trips people up. The Snipping Tool is built for capture and light markup: a ballpoint pen, a highlighter, an eraser, a ruler, crop, and on Windows 11 a few shapes. None of those is a redaction tool. There is no one-click blur, no pixelate, no black bar that is designed to permanently remove what is underneath.

So "redacting" in Snipping Tool means improvising. You draw over the sensitive area with a marker until it is covered. That can work, but because it is manual, the result is only as safe as your coverage, and the wrong tool gives you a false sense of security.

Why the highlighter is not redaction

The most common mistake is using the highlighter to "block out" text. The highlighter is translucent by design, so the words underneath are still there, just tinted. On screen it can look hidden. Zoom in, adjust the contrast, or open the file on another display, and the text often reads clearly.

The same caution applies to a light or thin pen stroke. If any part of a character peeks out past the mark, or the color is not fully opaque, the redaction has failed. Treat anything you can still partly see as not redacted.

How to redact in Snipping Tool safely

If Snipping Tool is what you have, here is the method that actually hides the data rather than just covering it on screen.

1. Capture or open the screenshot. Snip the screen, or open an existing image in Snipping Tool.
2. Pick an opaque marker. Use the ballpoint pen at full strength, or a filled shape on Windows 11. Skip the highlighter entirely.
3. Choose a solid dark color and cover the sensitive area completely, extending the mark a little past the edges of the text so nothing peeks out.
4. Zoom in and verify. Check the edges and any gaps. If you can see even part of a character, keep covering until it is gone.
5. Save a flattened copy. Use File, Save As to export a new PNG, and share that file. Keep your original separate, and do not send an editable version.

Done carefully, this removes the pixels from the exported image. The weak point is the "done carefully" part: it is manual, easy to rush, and easy to under-cover on a busy screenshot with several fields to hide.

Can hidden data be recovered later?

Once an area is fully covered with an opaque fill and saved as a flattened PNG, those pixels are not in the file anymore. The risk is not usually the fill itself, it is everything around it.

In 2023 a flaw nicknamed aCropalypse (CVE-2023-28303) affected the Windows 11 Snipping Tool and Google Pixel's Markup. When you cropped or edited an image and overwrote the original, the tool did not always truncate the file, so parts of the removed content could be recovered. Microsoft patched it in March 2023, so an up-to-date Snipping Tool is not exposed to that specific bug. The takeaway is still useful: editing an image in a screenshot tool is not the same as removing the data, which is why saving a fresh flattened file and verifying coverage matters.

A cleaner way to redact than Snipping Tool

For a one-off, the manual method above is fine. The moment you are redacting regularly, or the data is sensitive enough that a missed corner is a real problem, a dedicated redaction tool is worth it. A proper redaction layer gives you blur, pixelate, and solid fill as deliberate tools, snaps cleanly over a region, and flattens on export so there is no editable layer to undo.

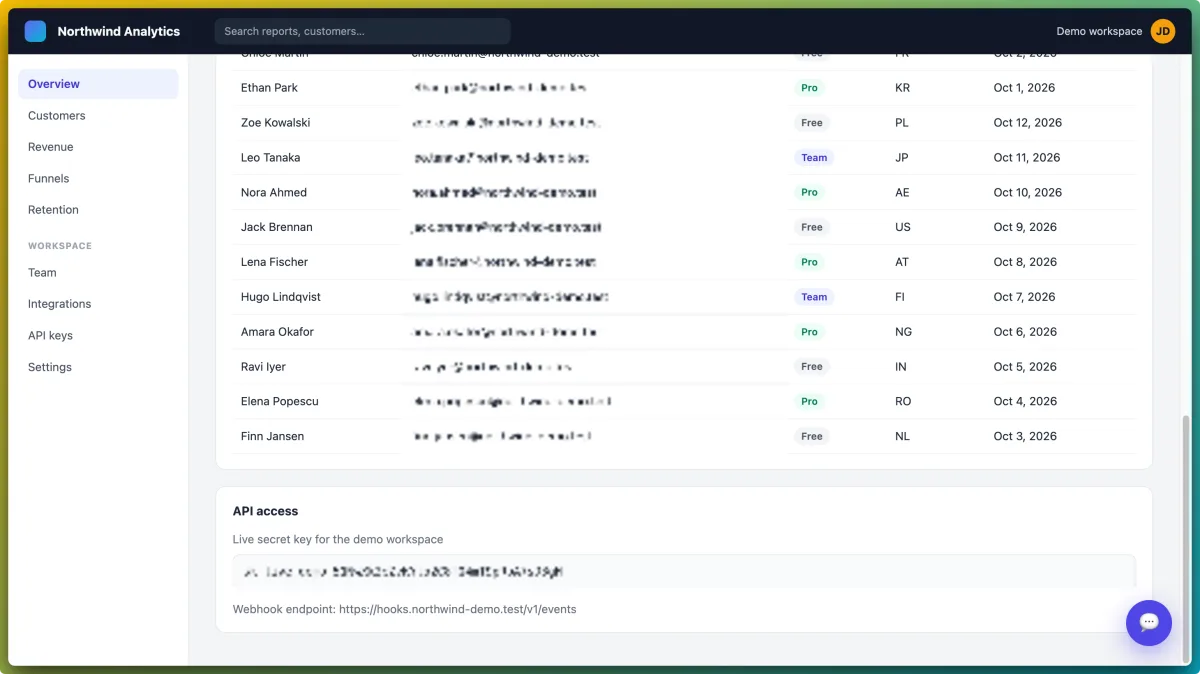

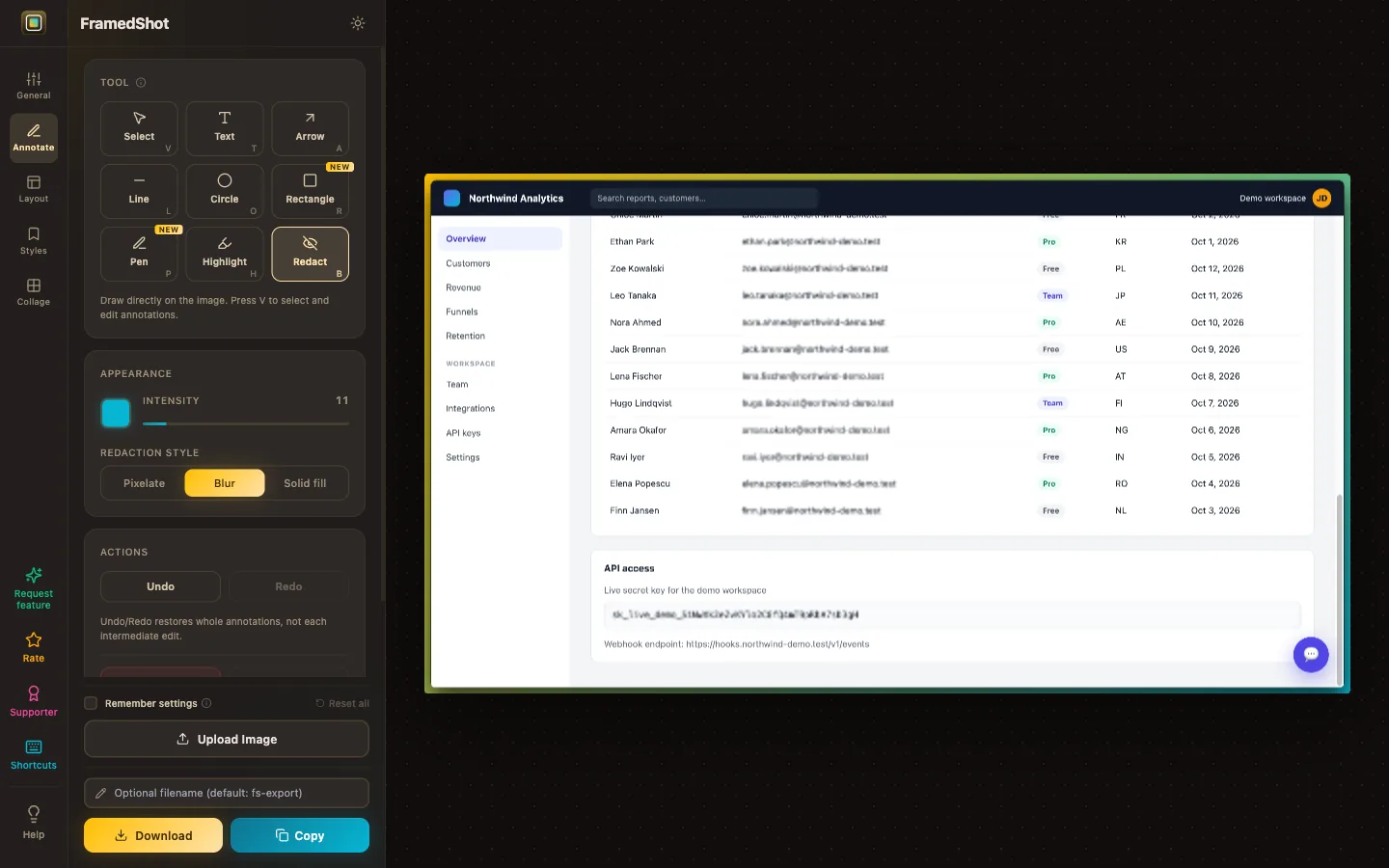

FramedShot does this in Chrome. You capture or upload a screenshot, drag a redaction over each sensitive field, and export. Everything is processed locally in the browser, so the screenshot is not uploaded to a server to be redacted. For the trade-offs between masking methods, see blur vs pixelate vs solid fill, and for the broader workflow, how to redact sensitive info in screenshots.

Snipping Tool vs a dedicated redaction tool

If you would rather stay out of a desktop app entirely, see the Snipping Tool alternative for Chrome, or the Windows-specific workflow in redact screenshots on Windows without uploading.

FAQ

Does Snipping Tool have a redaction tool?

No. The Windows Snipping Tool has no dedicated blur, pixelate, or black-box redaction tool. You improvise with the pen, the highlighter, or a filled shape, which is why coverage has to be checked manually.

Is the Snipping Tool highlighter safe for hiding text?

No. The highlighter is translucent, so text underneath often stays readable. Use an opaque pen or a solid filled shape instead, and zoom in to confirm nothing shows through.

Can redacted data be recovered from a Snipping Tool screenshot?

If you fully cover the area with an opaque fill and save a flattened PNG, those pixels are gone from the image. A 2023 flaw called aCropalypse (CVE-2023-28303) let cropped content be recovered from edited Snipping Tool images; Microsoft patched it in March 2023. The lesson holds: editing in a screenshot tool is not the same as removing the data, so always verify coverage.

What is the safest way to redact a screenshot on Windows?

Use a tool with a dedicated redaction layer that blurs, pixelates, or solid-fills the area and flattens it on export, then verify the result. FramedShot does this in Chrome and processes the screenshot locally, with no upload.
